TOS3200

Leakage Current Tester

The Leakage Current Tester TOS3200 is designed to perform leakage current (touch current and protective conductor current) tests on general electrical equipment but not medical electrical equipment.
It enables you to conduct tests that conform to the requirements of the applicable IEC, UL, JIS, and other standards, as well as the Electrical Appliance and Material Safety Law. The memory in the main unit stores the 51 types of test conditions laid down in the IEC/JIS standards for information technology equipment, household electrical appliances, audio, video electronic apparatus, luminaires, motor-operated electric tools, and electrical equipment for measurement and control and in the Electrical Appliance and Material Safety Law, thereby enabling you to conduct standard tests with simple panel operation.

Features

Line Up

Model	Specification
TOS3200	DC/RMC: 30µA to 30mA (DC/RMS: 50µA to 90mA), Seven types of measuring circuit networks are incorporated in the tester for measuring the touch current of general electrical apparatuses, 51 types of preset safety standard tests

Options (Related products)

TL21-TOS
Option(s) for Electrical Safety Testers
Test lead for TOS3200, equivalent to the supplied lead, cable length: 1.5m

FP01-TOS
Option(s) for Electrical Safety Testers
Flat probe for TOS3200, equivalent to the supplied lead, The flat probe is a type of sheet that measures the TC when the enclosure is touched with the palm of one’s hand. The size of the metal foil (10 cm X 20 cm) complies with IEC 60990.

HP21-TOS
Option(s) for Electrical Safety Testers
Test probe for TOS3200, TOS93XX *with a start switch

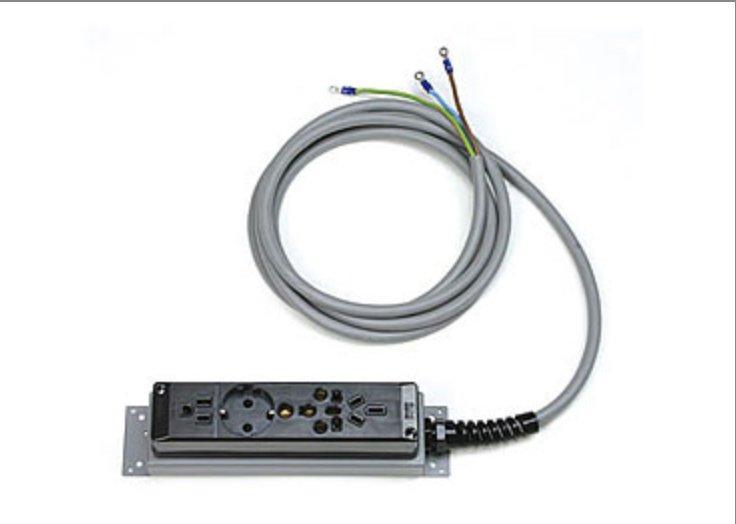

OT01-TOS
Option(s) for Electrical Safety Testers
Multi-output for TOS3200,TOS93XX allows the connection of the different plugs used around the world

KRA3-TOS
Rack Adapter
Rack adapter (Inch size) *Applicable model name: TOS3200

KRA150-TOS
Rack Adapter
Rack adapter (Metric size) *Applicable model name: TOS3200
