HIOKI (AC CLAMP POWER METER) CM3286

Hioki clamp meters are best in class handheld current and voltage meters for safely and accurately measuring power lines. The CM3286 clamp on power meter can measure voltage, current, power, power factor, phase angle, reactive power or frequency, as well as detect phase sequence on live lines at any desired point of a single-phase circuit or three-phase circuit.

Features

  • Key features
    • Display four parameters simultaneously
    • A handheld power meter that measures from 5 W of power and 60 mA of current
    Measure power ranging from 5 W at a low current of 60 mA to 360 kW
    • In addition to current, voltage, and power, measure simple integral power consumption and phase sequence
    • Features and functions deliver fast and efficient testing
    • Hold measured values to send them to a smartphone, quick and easy data recording (CM3286-01 only)Data can be downloaded to tablets and smartphones using Hioki’s dedicated apps available from the Google Play or App Store. (CM3286-01 only)
    Search for “HIOKI” and download the “GENNECT Cross” app.*Android, Google Play and the Google Play logo are trademarks of Google Inc.
    *iOS is a registered trademark of Cisco Technology, Inc. and/or its affiliates in the United States and certain other countries.
    *iPhone, iPad, iPad mini, iPad Pro and iPod touch are trademarks of Apple Inc.
    *Apple and the Apple logo are trademarks of Apple Inc. App Store is a service mark of Apple Inc.
    *Microsoft, Windows, Windows Vista, and Excel are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
    *Company names and Product names appearing in this catalog are trademarks or registered trademarks of various companies.
    *The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HIOKI E.E. CORPORATION is under license.

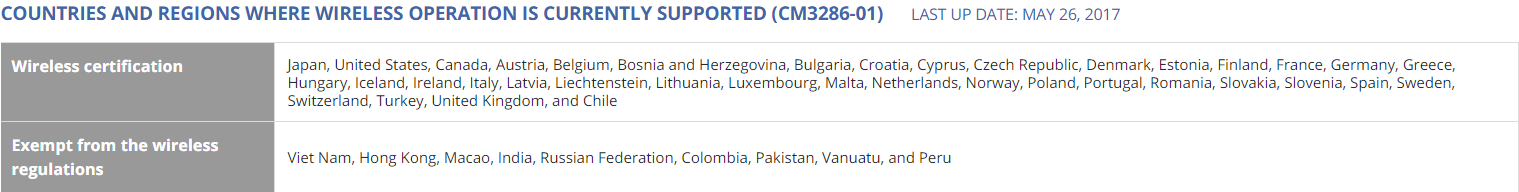

    *For the latest information about countries and regions where wireless operation is currently supported, please visit the Hioki website.
